HYDROAXE SHAFT DRIVE SCISSOR ROPE CUTTER

HydroAxe Scissor Action Rope Cutter for Shaft Drive applications

The HydroAxe Shaft Drive Scissor Rope Cutter is a scissor type action rope cutter for sailing yachts and motor boats that have a shaft drive installation.

Made In Britain and developed for Shaft Drive applications the HydroAxe Shaft Drive Scissor Rope Cutter will protect propellers from weeds, rope, nets and other debris from fouling the propeller potentially causing expensive damage to your drive train. HydroAxe Rope cutters provide the best protection for your vessel!

The HydroAxe Shaft Drive Scissor Rope Cutters are compatible with low drag propellers and fixed propellers.

No modifications are needed to your propeller no matter what propeller type fitted!

Powerful Scissor Action Cutting Design

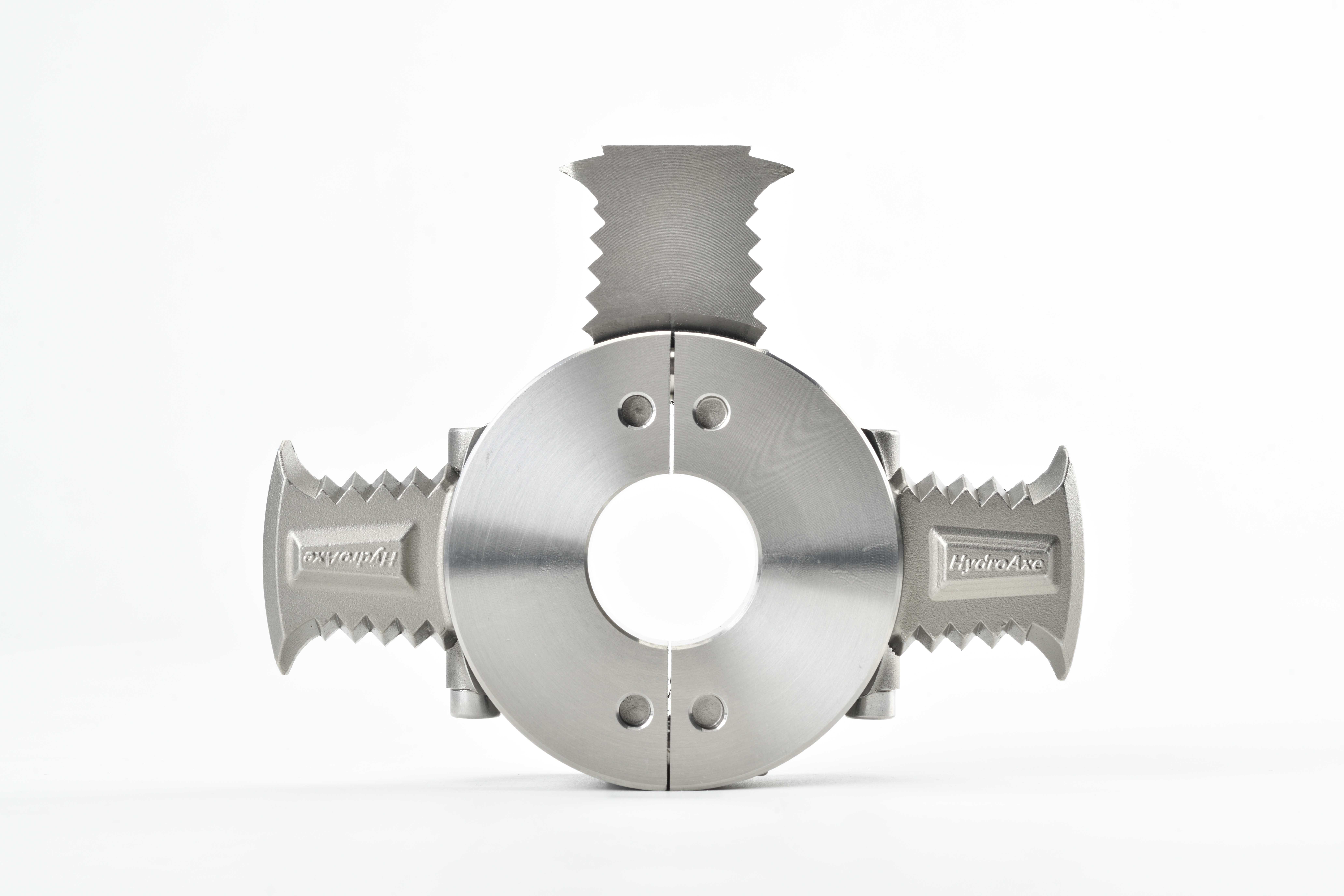

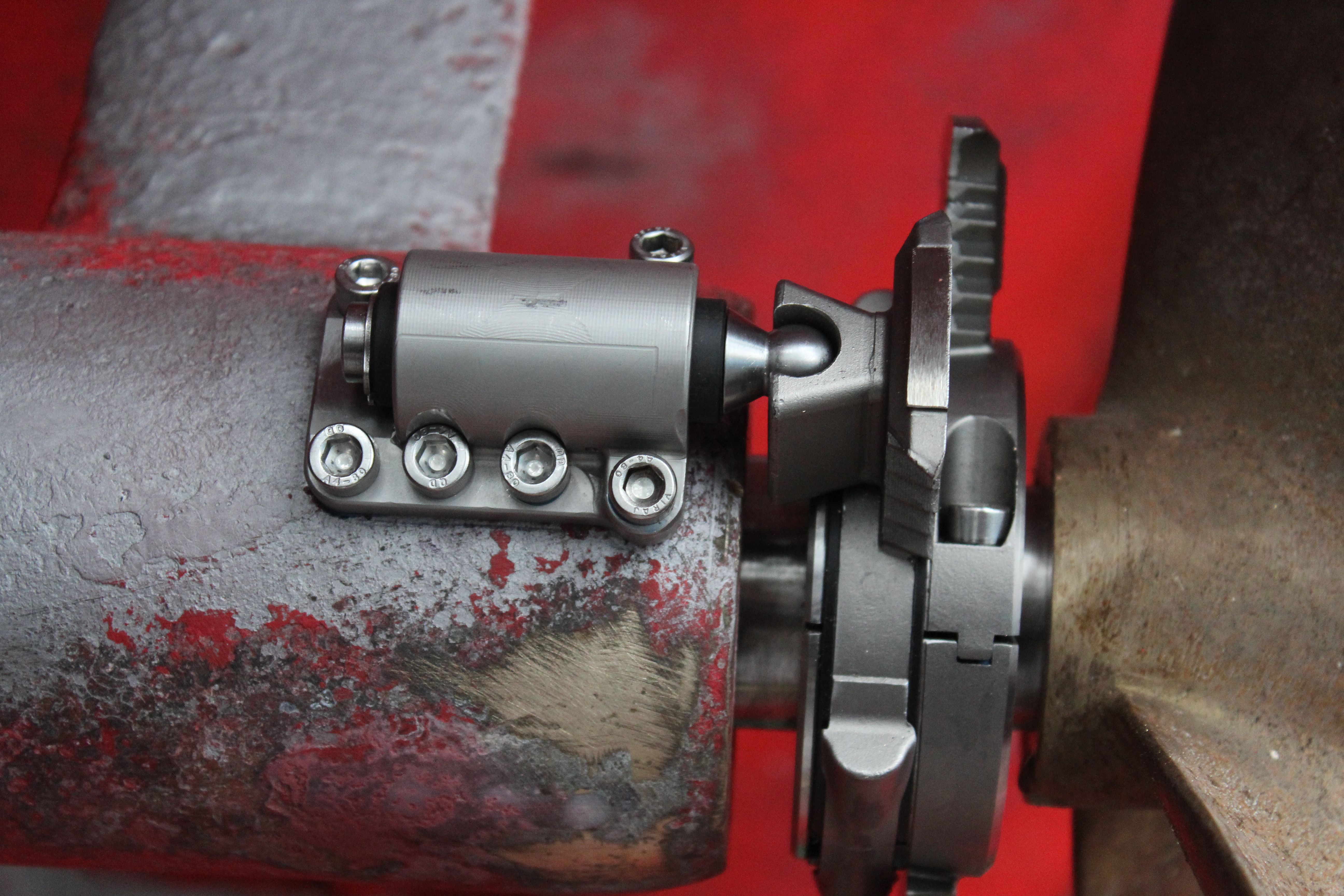

The HydroAxe Scissor Action Rope Cutter utilises a fixed stationary blade secured by a mounting block fixed to the bearing housing and a 2 Blade cutter that is secured to the shaft to provide an aggressive scissor type action – scroll down to see a video of this cutter in action!

Shaft Diameter	Bearing Housing Diameter	Min. Gap Required
30mm-50mm	47mm-110mm	40mm

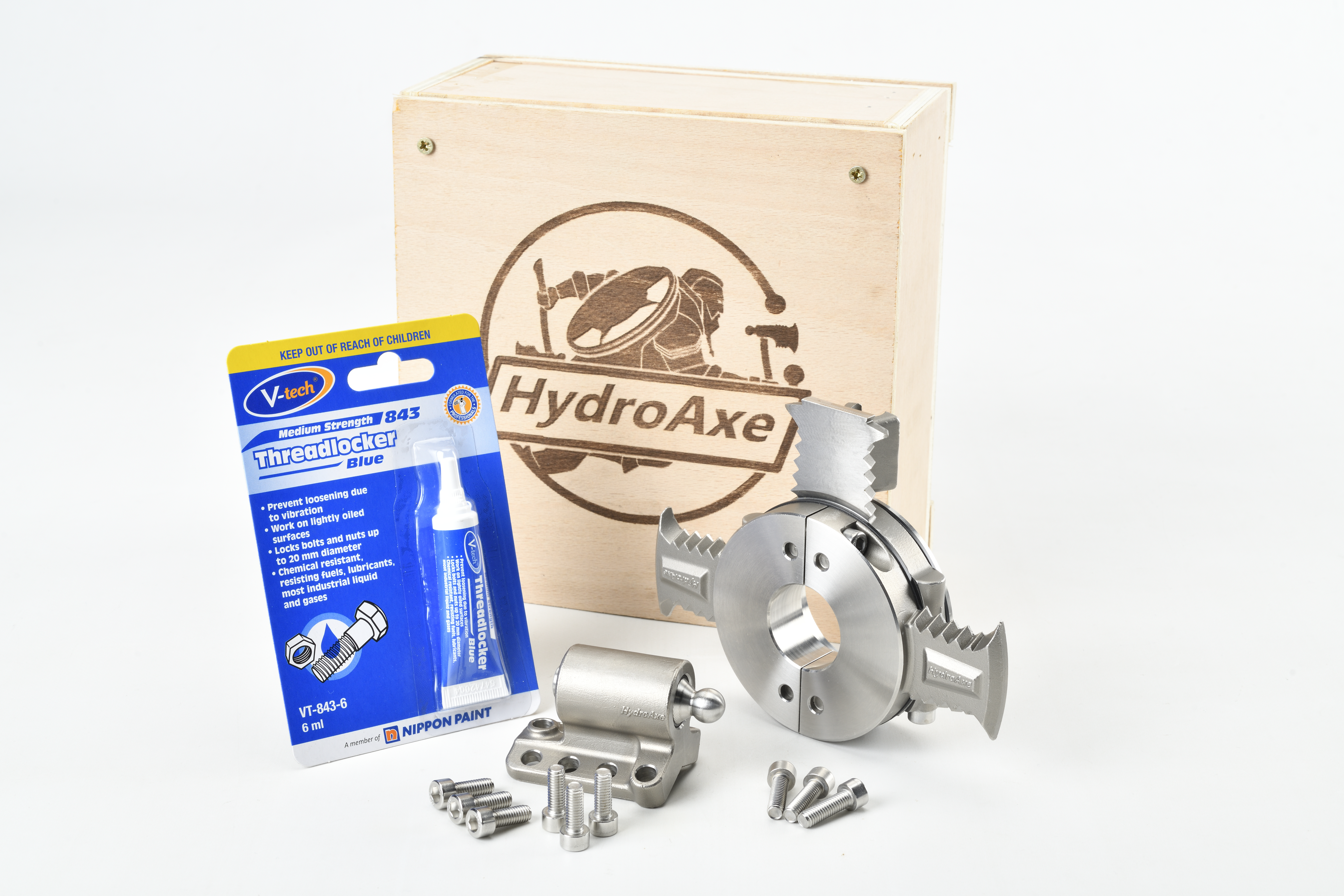

What’s in the box?

In the box you will receive…

1 x HydroAxe HA03 Rope cutter
1 x Mounting Block
1 x Ball Joint Assembly

HydroAxe Shaftdrive Scissor Action Rope Cutter

Designed for motor boat and sailing yacht shaft drive installations

No need to modify propeller

Premium Materials

Made in Britain

Compatible with low drag and fixed propellers

The HydroAxe is supplied with a specific installation kit and full instructions for your installation.

Fitting the HydroAxe Rope Cutter

Tools required for fitting are Power Drill, 7mm Drill Bit, 5mm Drill Bit, M6 Tapping kit, Clamp (G-Clamp), Scotch Brite/fine sandpaper, 5mm Allen Key and Hammer/mallet.

View our HydroAxe Scissor Action Rope Cutter Fitting Instructions.

For assistance please contact the Darglow team.

**Please note: The HydroAxe is not currently available for outboard engines or stern drives**

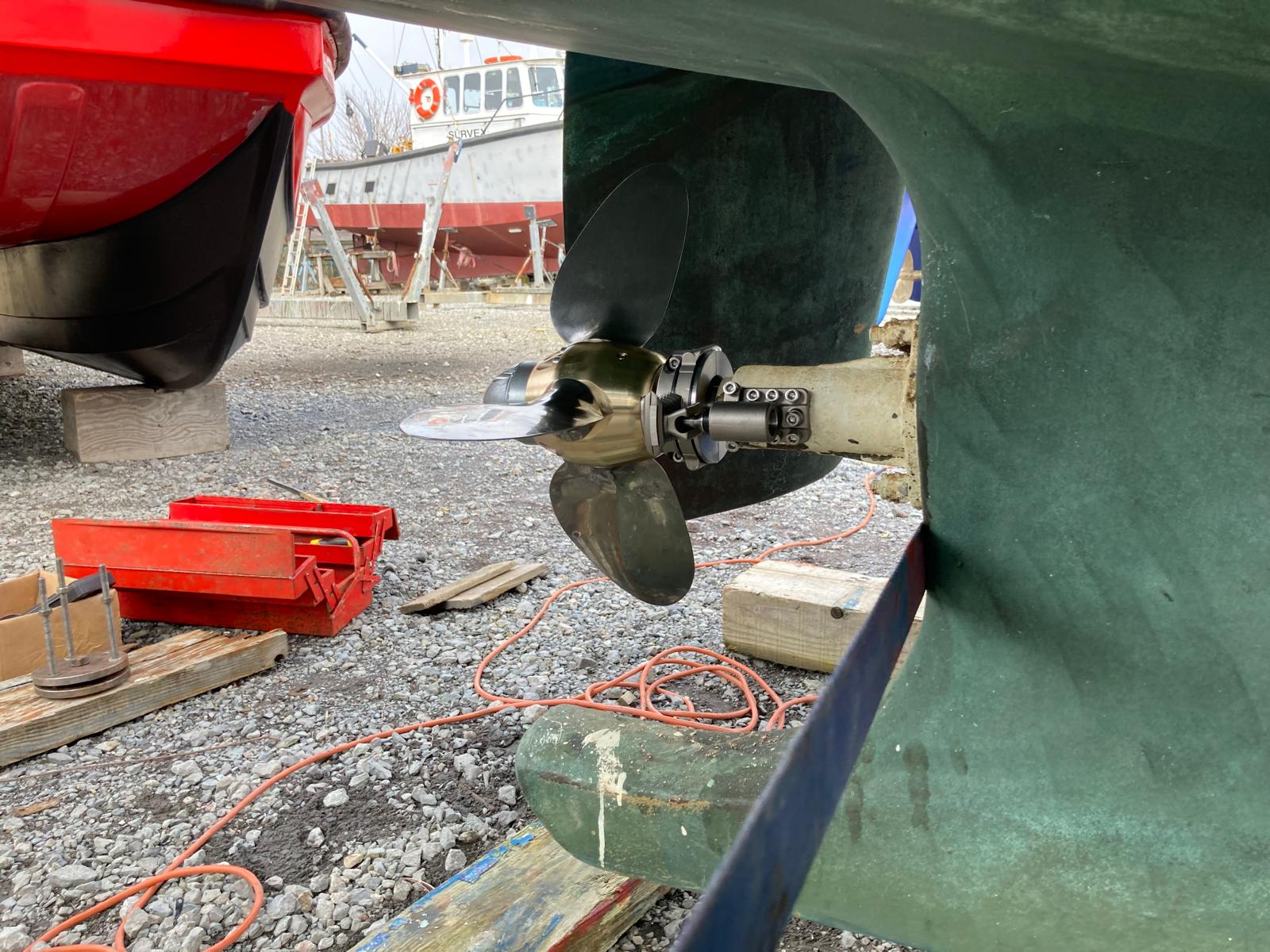

See the HydroAxe Shaft Drive Scissor Rope Cutter in action below!
